Product Description:

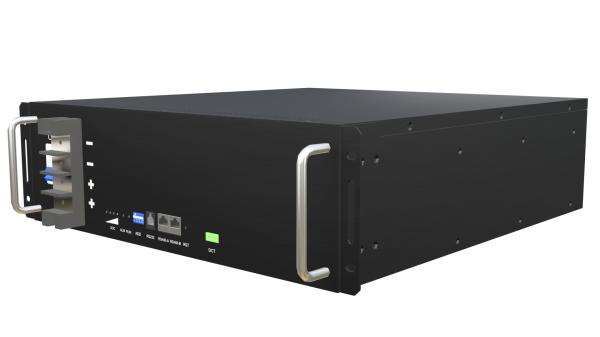

The Helith Hyper 48100 is a high-performance, rack-mounted LiFePO4 battery designed to deliver reliable, long-lasting energy storage solutions. With a nominal voltage of 51.2V and a capacity of 100Ah (5120Wh), this advanced battery offers more than 6000 cycles of operation, making it an ideal choice for both commercial and industrial energy storage applications. Featuring A-Grade LiFePO4 cells and a comprehensive Battery Management System (BMS), the Hyper 48100 ensures safety, efficiency, and optimal performance. It also supports both series and parallel connections, offering scalability to meet the evolving energy demands of your business. The battery operates within a wide temperature range and comes with an optional LCD display for easy monitoring.
Features:
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah (5120Wh)
- Cell Type: A-Grade LiFePO4, Prismatic 100Ah Cells
- Cycle Life: >6000 cycles for long-term reliability
- Charge/Discharge Current: Max. 100A for both charge and discharge
- Operating Voltage Range: 40V-58.4V
- Communication Interfaces: RS485, CAN
- Battery Management System (BMS): Comprehensive protection for safety and performance
- High Voltage Series & Low Voltage Parallel Connection Support: Flexible for various configurations
- Temperature Range: Charge: 0°C to 55°C; Discharge: -20°C to 55°C
- Dimensions: 442 x 410 x 133 mm (3U)
- Weight: 42kg
- Installation: Easy rack-mount design for convenient integration
- Optional LCD Display: For real-time monitoring (optional)
Technical Parameters:
| Parameter | Value |
| Rack-Mounted Power Bank | Yes |
| Rack-Mounted Power Supply | Yes |
| Rack-Mounted Energy Source | Yes |
| Max Discharge Current | 100A |
| Dimensions | 442x410x133 3U
|
| Weight | 42kg |
| Cycle Life | >6000 Cycles |
| Protection Level | IP65 |
| Voltage | 51.2V |
| Charge Voltage | 51.2V |
| Capacity | 100Ah |
| Discharge Cut-off Voltage | 51.2V |
| Warranty | 5 Years |
Applications:
- Commercial Energy Storage: Ideal for warehouses, factories, and office buildings requiring dependable power storage.
- Industrial Energy Solutions: Suitable for applications in manufacturing plants, production lines, and large-scale operations that demand high-performance batteries.
- Renewable Energy Systems: Perfect for solar and wind energy storage to optimize energy management and reduce reliance on grid power.
- Backup Power Systems: Provides reliable backup for critical systems and equipment, ensuring business continuity during power outages.
- Off-Grid Energy Storage: Designed for use in off-grid and hybrid power systems, offering an efficient and cost-effective energy storage solution.
FAQ:
Q1:What is the expected lifespan of the Hyper 48100 battery?
The Hyper 48100 has a cycle life of more than 6000 cycles, ensuring long-term performance and reliability for commercial and industrial applications.
Q2: Can I install multiple Hyper 48100 units in parallel?
Yes, the Hyper 48100 supports both series and parallel connections, allowing you to scale your energy storage system according to your needs.
Q3: What is the maximum charge/discharge current of this battery?
The maximum charge and discharge current of the Hyper 48100 is 100A, making it suitable for high-demand applications.
Q4: What temperature ranges can the battery operate in?
The battery operates within a charge temperature range of 0°C to 55°C and a discharge temperature range of -20°C to 55°C.
Q5: Does the Hyper 48100 come with a built-in display?
The battery comes with an optional LCD display for real-time monitoring of key parameters such as voltage, current, and charge status.
Q6:What communication interfaces are supported by the Hyper 48100?
The Hyper 48100 supports RS485 and CAN communication interfaces, allowing for seamless integration into energy management systems.
Q7: What type of cells are used in the Hyper 48100?
The battery uses high-quality A-Grade LiFePO4 prismatic cells, ensuring safety, efficiency, and long cycle life.
